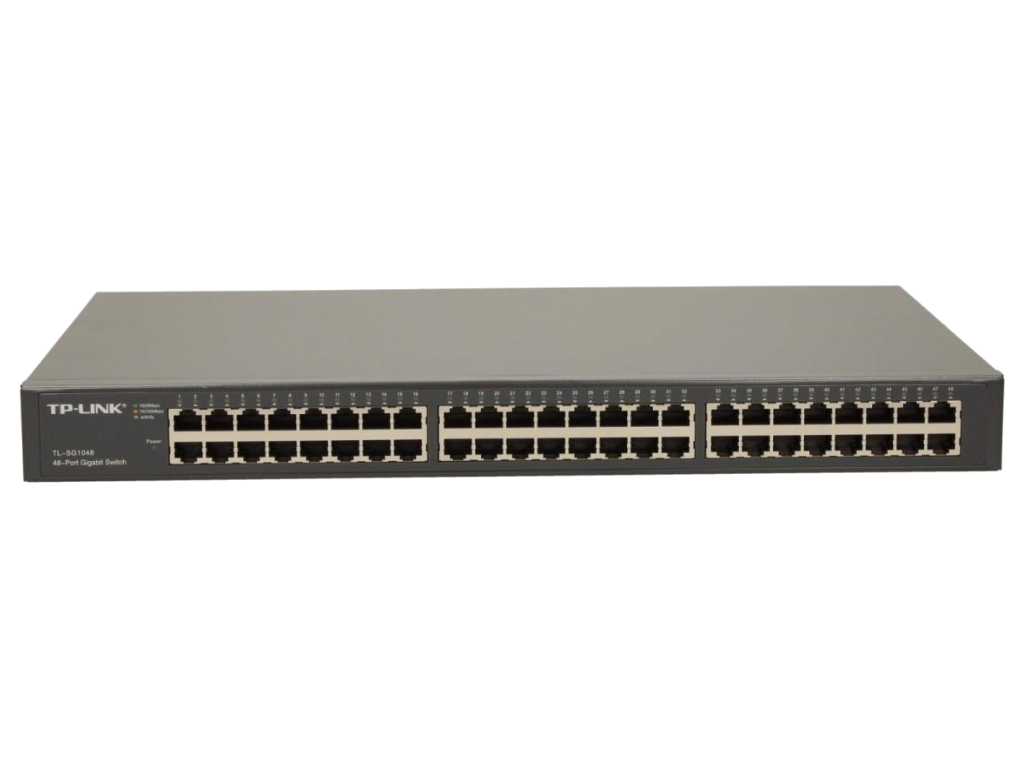

TL-SG1048 48-Port Gigabit Switch

NGN 370,000.00

Product Details

HARDWARE FEATURES

Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x

Interface: 48 10/100/1000Mbps RJ45

Ports: (Auto Negotiation/Auto MDI/MDIX)

Network Media 10BASE-T: UTP category 3, 4, 5

cable (maximum 100m) 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity: 2

Power Supply: 100-240VAC, 50/60Hz

Power Consumption Maximum: 32.3W

Dimensions ( W x D x H): 17.328.71.73 in.(44022044 mm)

Mounting: Rack Mountable

Max Power Consumption: 32.29W(220V/50Hz)

Max Heat Dissipation: 110.17BTU/h

PERFORMANCE

Switching Capacity: 96Gbps

Packet Forwarding Rate: 71.4Mpps

MAC Address Table: 16K

Buffer Memory: 12Mb Jumbo Frame: 12KB

Transfer Method: Store and forward
